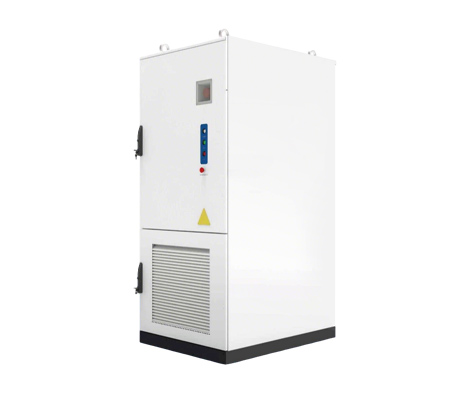

All-in-one Liquid-cooled ESS Cabinet (125KW/261KWH)

ECO-E261LP-2A

The ECO-E261LP-2A features advanced pack-level liquid cooling and temperature balancing, maintaining cell temperature differences within 3°. This enhances cell temperature consistency and ex-tends battery life. Its modular design enables flexible parallel con-figurations and higher energy density, significantly improving the cost-effectiveness, safety, and installation convenience of ESS projects.

Features

Compact: 1.4㎡ footprint only, easy transportation & fast installation.
High Integration: 261kWh energy in one cabinet with remarkable endurance.
Efficient Cooling: Optimal in-PACK duct design, achieve high-efficient cooling and low energy consumption.
Flexible Expansion: Modular design, simplified parallel expansion.
Long Cycle Life: Over 8,000 times cycle life, excellent performance of battery system.
Ultimate Safety: In-PACK fire warning and protection with aerosol, prevent heat diffusion and runaway.
