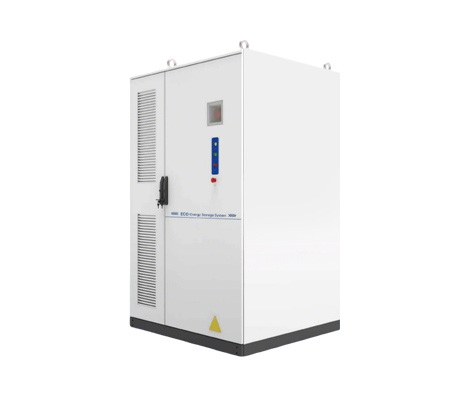

All-in-one Liquid-cooled ESS Cabinet (210kw/418KWH)

ECO-E418LP-A40/69/80

The E418LP series includes models with 400V, 690V, and 800V output options, suitable for different application scenarios and requirements. They feature advanced pack leveI liquid cooling and temperature balancing, maintaining cell temperature differences within 3℃. This enhances cell temperature consistency and extends battery life. Its modular design enables flexible parallel configurations and higher energy density, significantly improving the cost-effectiveness, safety, and installation convenience of ESS projects.

Features

Compact: 2㎡ footprint only, easy transportation & fast installation.
High Integration: 418kWh energy in one cabinet with remarkable endurance.
Efficient Cooling: Optimized in-PACK duct design ensures high-efficiency cooling with reduced energy consumption.
Flexible Expansion: Modular design, simplified parallel expansion.
Long Cycle Life: Over 8,000 cycles, providing excellent long-term battery performance.
Ultimate Safety: In-PACK fire warning and protection with aerosol, prevent heat diffusion and runaway.
