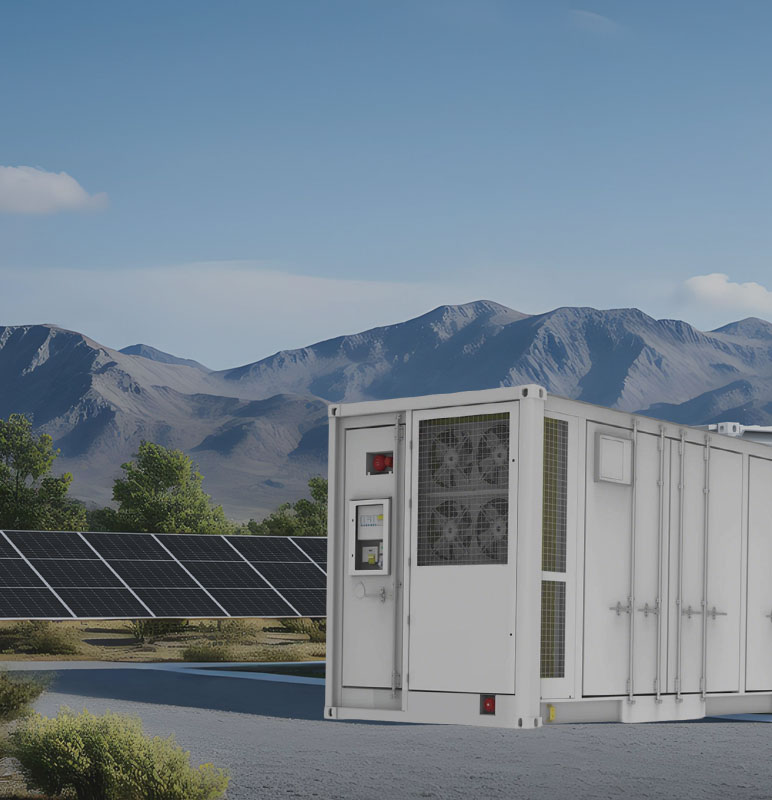

Liquid-cooled Hybrid ESS Cabinet (125KW/261KWH)

ECO-E261LP-2H

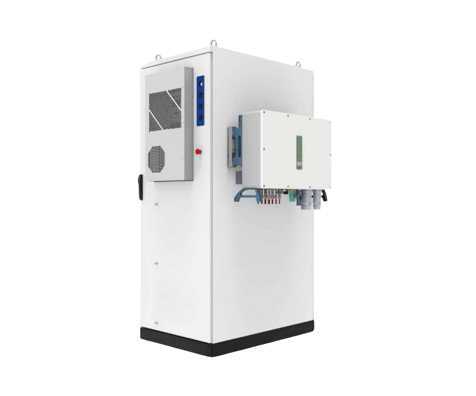

The ECO-B261LP-2H is an integrated liquid-cooled PV-plus energy storage cabinet that combines lithium battery modules, a fire suppression system (FSS), and an embedded EMS into a single compact unit. Its integrated design simplifies system architecture and installation, while the modular structure allows flexible capacity expansion as project requirements grow. When used with a hybrid inverter and intelligent energy management, the cabinet supports multiple operating modes, enabling efficient coordination between PV generation, energy storage,and load demand.

Features

Safe & Reliable：IP55,optimized ventilation design, temperature difference within 3°C
Higher Space Utilization: 1.4 footprint, larger capacity per cabinet, saving space and site cost.
High PV Utilization Capability: Supports up to 250 kW PV input with wide MPPT voltage range for flexible PV system design.
Versatile: Support multiple brands of hybrid inverter, with higher selectivity.
Expandable & Modular：Easy modular design supports parallel connection for convenient system expansion
Simplified System: Sufficient power for most commercial/industrial applications, reducing parallel inverters.
