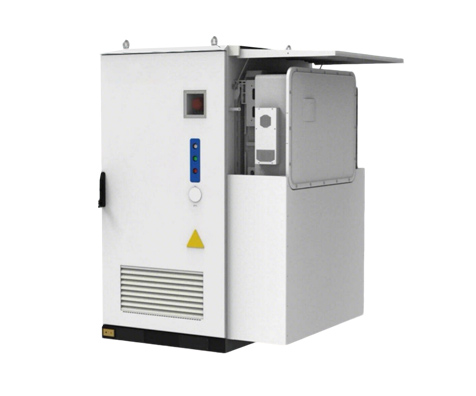

Air-cooled Hybrid Cabinet (64KWH)

ECO-E64WX

The ECO-E64WX is a compact PV-plus ESS solution, designed on ESS integration and digital monitoring technologies. The cabinet integrates components such as lithium battery, HVAC, fire sup-pression system (FSS), and EMS. With compact structure, it enables easy installation and flexible capacity expansion. Paired with hybrid inverter, the ESS supports multiple work modes and various operation strategies.

Features

Economical and Efficient: RTE up to 87%, DOD up to 100%.
Safe & Reliable: IP55, optimized ventilation design, temperature difference within 6°C.
Compact & Convenient: 0.96m2 footprint, easy to transport and install.
Expandable & Modular: Modular design supports parallel connection for convenient system expansion.
Versatile: Support multiple brands of hybrid inverter, with higher selectivity.
PV pluggable: Support PV connection, with higher integration.
Self-developed: PACK and EMS are all independently developed with good compatibility.
Easy O&M: Support multiple ways of operation and maintenance, including onsite, cloud.
