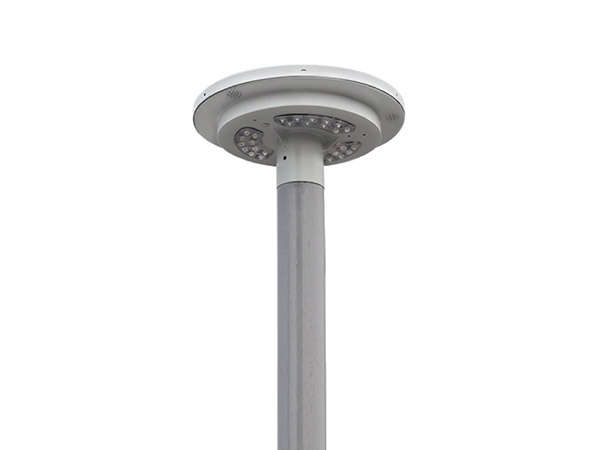

SSL-G1 (UFO A) Solar Garden Light

All in one solar garden light combines all components into one system, greatly enlarged the lighting area by 360° view angel design. UFO series solar-powered lights are designed with a beautiful round UFO-like appearance. It is equipped with a high-efficiency monocrystalline PV, high brightness LED module, which creates a great viewing effect.

Function

Remote control and light control
All Night Lighting, 360° view angle
Turn on at dusk and turn off at dawn automatically.
Aluminum alloy case, Patent integrated design

3 Years Warranty

IP65 Waterproof

Mono Solar Panel

LiFePO4 Battery

Motion Sensor

Easy Maintenance

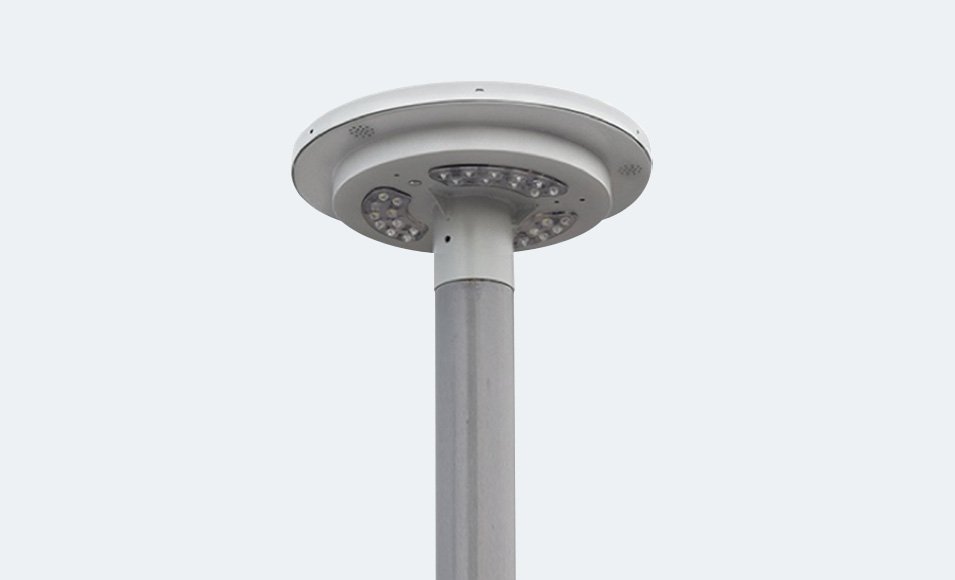

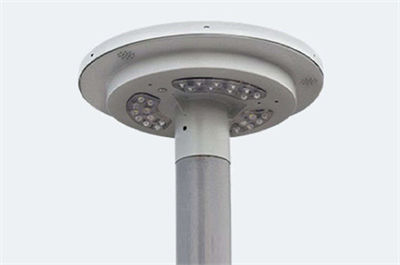

360° view angle

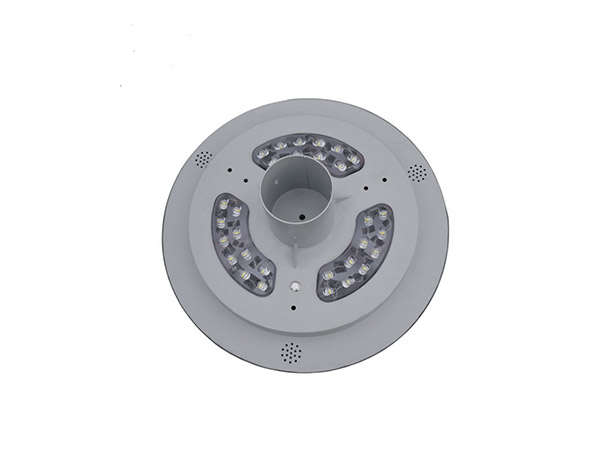

USA Bridgelux LED chips, Aluminum lamp base excellent heat dissipation, 360° view angel

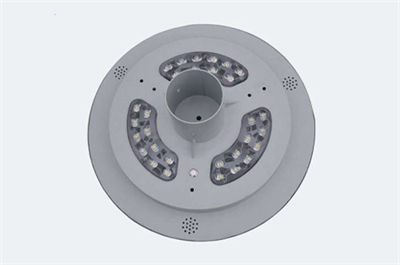

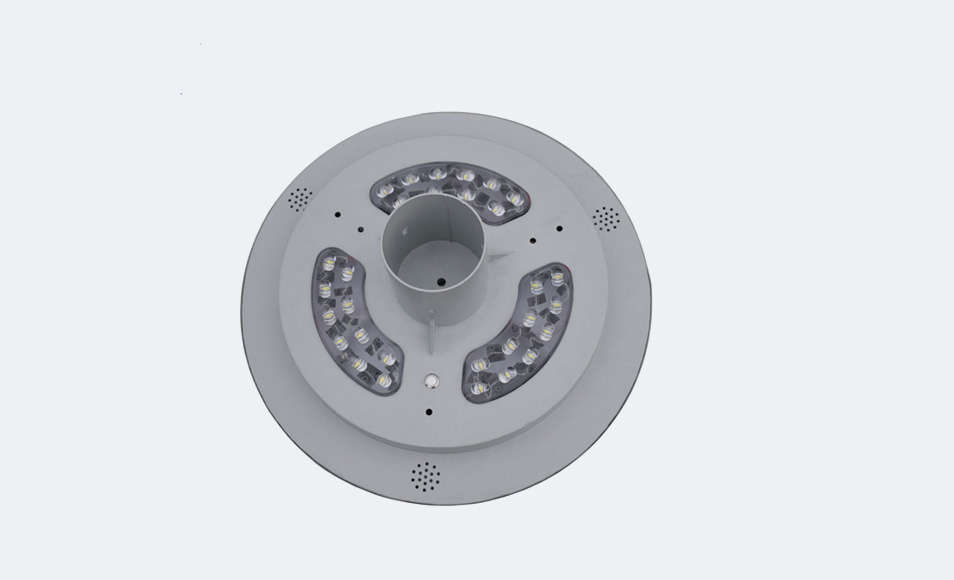

4 lighting modes for choice

Remote control + Time control + Light control+ Motion sensor

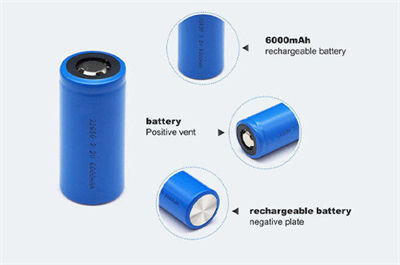

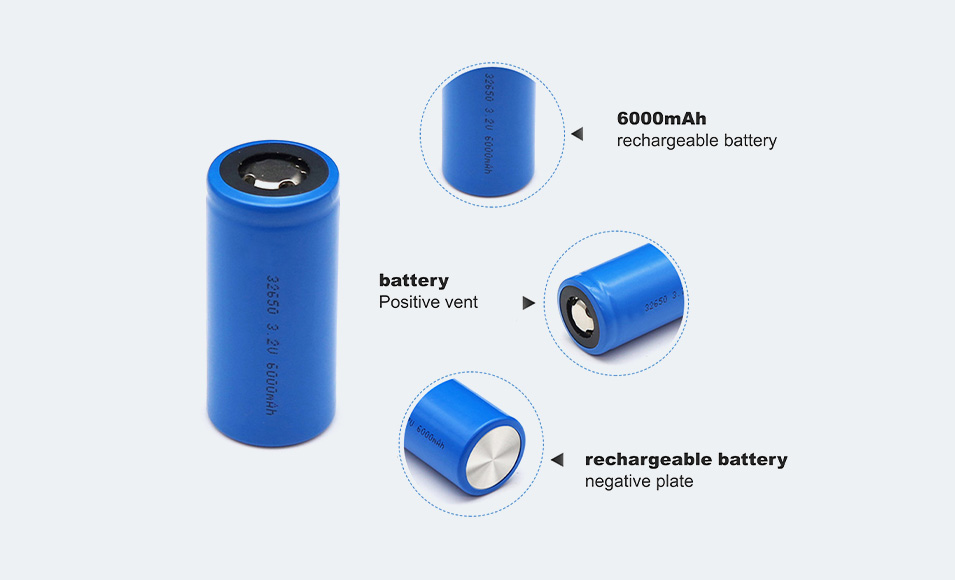

High temperature resistant lithium battery, +10 years lifetime

Multiple battery protection technology allows the lamp working under high temperature safely

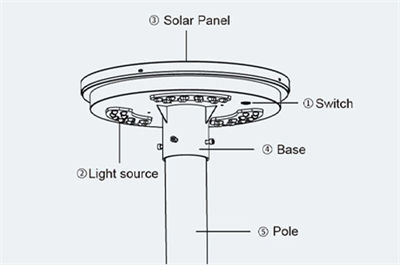

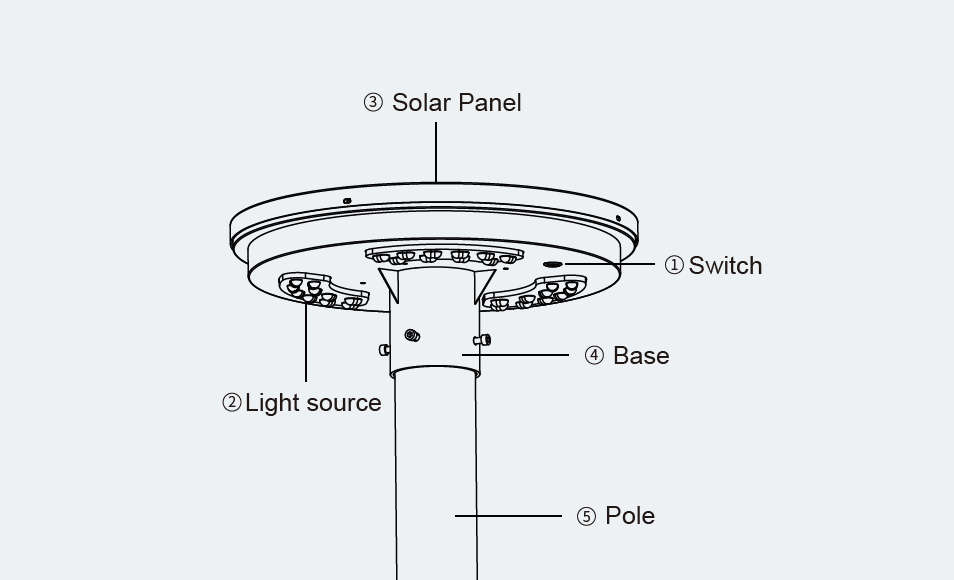

UFO modern design, Easy installation, free maintenance.

Integrated design, easy installation and transportation, just need several bolts

Product Specification
Solar Street Light Model	SSL-G1 (UFO A) Solar Garden Light
LED Power	15W- 50W (bigger power accept customization)
LED Lighting	Bridgelux USA/Philips /Cree USA, Color temperature 2700-6500k
Solar Panel	20w -50w Monocrystaline Grade A, 25years Warranty, DC 18V
Light Mode	All in one solar street light mode: Night sensor +Time control
Battery	Lithium LIFEPO4, Battery lifetime Over 8 Years
Lamp shell	Aluminum Alloy with Anodizing process
Back Up	3 to 7 Rainy Days
IP Rating	IP65
Certificate	CE/EMC/ROHS/IP65

SOLAR STREET LIGHT: HOW DOES IT WORK ?

Our solar-powered street lights will mainly use the solar cells in the panel to seize the energy from the sun during the day, and that energy will be converted into electricity and stored in the battery automatically. Once sunlight starts to fade and the solar panel voltage drops lower than the set volts, LEDs will then progressively start to light on. The controller in the system normally controls the battery charging and the working time and mode of the solar street light. Our solar street light will remain on throughout the night, consuming the energy stored in the battery. The next day the cycle repeats.

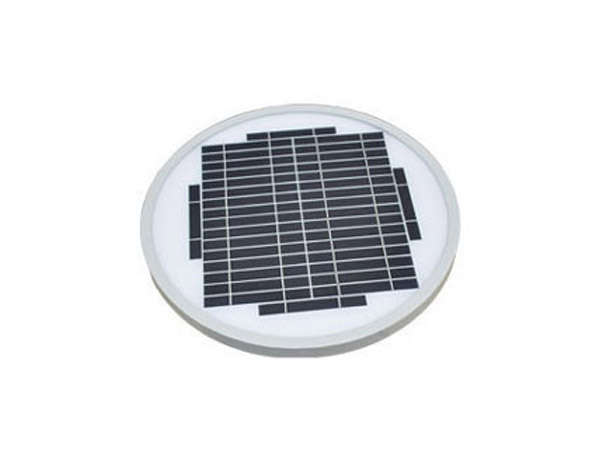

1 High Efficiency Mono SOLAR PANEL

During the day, the solar panel convert the sun’s energy into electricity. Even in a bad weather conditions the solar panel still produce electricity. We will customize the size of the solar panel according to your geographical area to optimize the efficiency.

2 Intelligent Lighting Mode

Intelligent light mode: Time control + Light control + PIR Motion sensor. PIR Motion sensor working principle as follows: With infrared human motion sensor, the solar street light can work full power when people walk into the sensing range; When people walk out of the range, the light can dim to certain power as required. At the same time, it can flexibly adjust the percentage of lighting power according to special requirements.

3 LED: Superior Light Source

During the night, the Led luminaries will switch on according to the customer set up using the electricity provided by the battery through the controller. Bridgelux LED chips from USA with high brightness, luminous efficiency can reach up to 180lm/w, +100,000 hours long lifetime.

4 Ultra-long lifetime and Reliable LiFePO4 Battery

The electricity generated by the solar panel during the day is stored in the Battery made especially for our solar lighting application. The Eco-friendly and safe LiFePO4 battery improves the cyclic charge and discharge over 2000 times and has a life span of more than 10 years. Multiple battery pack protection measures ensure the lamp can work safe and durable under high temperature.

Tell us how we can light up your next project

SEND US THE DETAILS

Application

The SSL-G1 series solar garden light is widely used for garden, park, residential areas, streets, rural roads, campus, bike trails, parking lots and many public areas lighting.
