Solar Hybrid Air Conditioner 12000/18000/24000BTU

Advantages

100% solar panel drive in day time, help you to reduce the 60%-90% electricity bill
No battery, no inverter, no wire controller, only Solar panels
AC/DC/AC+DC mix power supply
Best energy saving solution with high investment return rate
Increase the value of your house, shop and office
Suitable for areas with good sunshine, enjoy cooling days without grid
Plug and Play, easy installation
Can be powered by the Solar home energy storage system as a standalone unit

Tell us how we can light up your next project

SEND US THE DETAILS

Working Principle

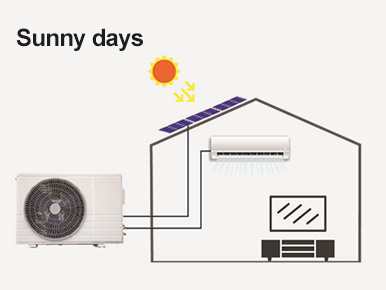

When the PV power meets the minimum operating power of the compressor, the air conditioner can start and be powered by solar energy only. This results in 100% energy savings.

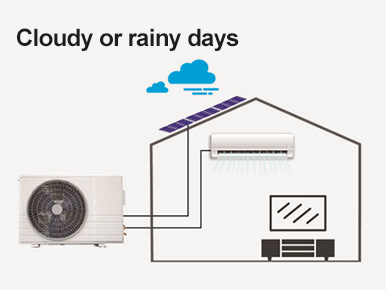

When the sunshine is not sufficient, such as in the morning or on a cloudy day, the air conditioner will prioritize using PV electricity. Any shortfall will be supplemented by the power grid.

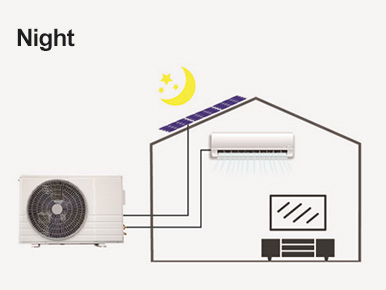

During the night, the air conditioner consumes electricity from the power grid and operates on the same principle as a regular air conditioner.

1 Solar Panel

Any solar panel can be connectedto this solar air conditioning system,simply by series connection, with amaximum of 380V open circuit voltageModern solar technology can providestable, efficient and reliable electricitywithout maintenance.

2 Brushless DC fan motor

Both the indoor unit and outdoor unit adoptbrushless DC fan motors, equipped withbrushless permanent magnet motor drivers.They can provide variable frequency drive,enabling the system to adjust power accordingto dynamic conditions, significantly reducingenergy consumption with extremely lowoperating noise.

Technical Data Sheet
MODEL	12000 / 18000 / 24000BTU
DC Power(vdc)	100-380
AC Power(vac)	208-230, 50-60Hz
Solar Power Current(A)	≤12
Cooling Capacity(w)	3520 / 5200 / 7050
Heating Capacity(w)	3550 / 5120 / 7120
Cooling Input Power(w)	1000(260-1550) / 1650(560-1900) / 1860(680-2600)
Heating Input Power(w)	960(260-1550) / 1350(400-1900) / 2050(680-2600)
EER(w/w)	3.52 / 3.15 / 3.79
Weight ofindoor Unit(kg)	10/13 / 13/16 / 13/16
Weight of Outdoor Unit(kg)	29/32.5 / 37/41 / 48/53
Indoor Unit Size(mm)	900290195mm / 1080327227mm / 1080327227mm
Outdoor Unit Size(mm)	780255540mm / 820300600mm / 900360640mm
